Fluororubbe

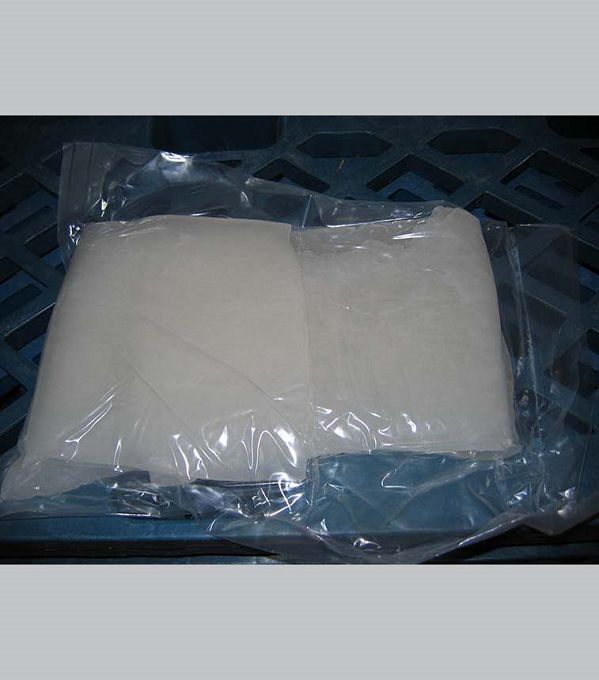

FKM Copolymer Gum

FKM Copolymer Gum

FKM-HF2600 is copolymer of HFP and VDF. Normally it is white or light yellow translucent elastomer whose fluorine content is over 66%. After vulcanizing process, FKM products have excellent mechanical performance, outstanding anti oil property (fuel oil, synthesis oil, lubricating oil) and high...

Products Details

FKM-HF2600 is copolymer of HFP and VDF. Normally it is white or light yellow translucent elastomer whose fluorine content is over 66%. After vulcanizing process, FKM products have excellent mechanical performance, outstanding anti oil property (fuel oil, synthesis oil, lubricating oil) and high thermal stability.

Quality Specification

Item

Unit

HF2601A

HF2601B

HF2602

HF2603A

HF2603B

HF2604A

HF2604B

Appearance



white or light yellow translucent rubber piece


Specific Gravity

g/cm3

1.78-1.83

1.80-1.84

1.80-1.84

1.80-1.84

Mooney viscosity
[ML(1+10),121℃]


10-29

30-39

40-60

61-79

80-100

101-120

121-200

Tensile strength, ≥

Mpa

11.0

11.0

11.5

11.5

Elongation at break, >

%

150

150

160

160

After aging 24hr. at 270℃≥ Tensile strength,Elongation at break

MPa
     %

9.0
     120

9.0
     120

9.5
     130

9.5
     130

Compressive set, ≥; (270℃×24h, AF compression rate 30%)

%

25

25

25

25

Oil resistance (1# aircraft fuel, 200℃×24h, added weight), ≤

%

6

6

6

6

Properties


Low viscosity, excellcnt rheological properties

Moderate viscosity

Middle and high viscosity, good milling and calendaring performance

High viscosity, high gum strength

Ultra-high viscosity

Application


A

B

C

D

E

A: Additive of high Mooney rubber, O-ring, anti-extrution parts of product

B: O-ring made by compression moulding, injection moulding and imjestion, extruded hose

C: Calendaring sheet, skeldtal oil seal, extruded hose, etc.

D: General parts made by injection moulding, and oil seals, etc.

E: Parts made by compression mouldiong, high strength vulcanized products.

Main Applications

Widely used in high temerature, aviation, automobile, petroleum and chemical imdustries, oils lubricants, etc. Mainly used to produce gaskets, O-rings, V-rings, sealing bowl with metal bone, diaphragms, tube, valve-plate, rolls, etc.

Attention

1、Fluoroelastomer gum has good thermal stability below 260℃; It will minimally decompose when placed in the temperature of 260℃-300℃ for a long time; When hither than 320℃, it will quickly decompose, and poisomous HF and fluorocarbon organic compound are produced; When it meets fire, it also release poisonous HF and fluorocarbon organic .compound.

2、Attention: FKM shouldn' t be calandered with metal powder (such as AI and Mg) or animine compound more than 10%. If that happpens, emperature will arise and several element will react with FKM, which will damage the equipment and operators.

Package, Transportation and Storage

1、FKM is packed in PE bags, then packed in carton case, net weight: 20kg per drum.

2、FKM should be stored in chean, dry and cool places. The product is transported according to non-hazardous chemicals. Avoid contamination, sunlight and water.

3、Storage period is one year since production, when exceeding the shelf life, it still can be used as long as it is retested and approved.
